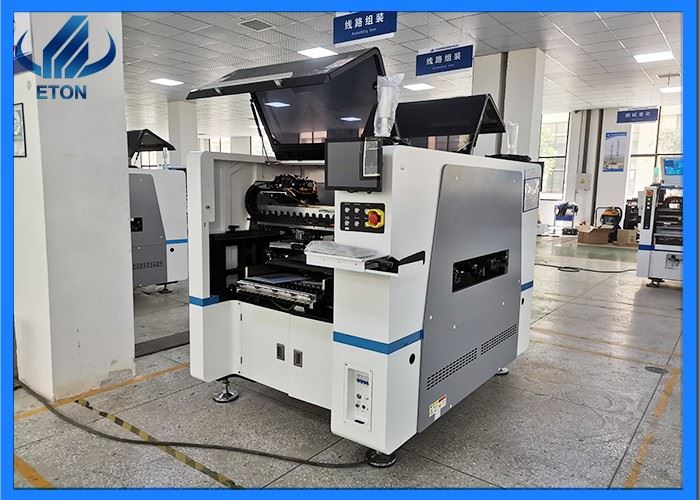

DOB Bulb Pcb Processing Pick And Place Machine

1. DOB bulb manufacturing machine, 20 heads, 64 feeders2.20 heads, production capacity of 90000cph, high-speed machine3. Double head double mounter, one head with 10 suction nozzles, each suction nozzle is controlled by an independent servo motor

Изпрати запитване

Функция

DOB bulb pcb processing pick and place machine


Machine introduction

1. DOB bulb manufacturing machine, 20 heads, 64 feeders

2.20 heads, production capacity of 90000cph, high-speed machine

3. Double head double mounter, one head with 10 suction nozzles, each suction nozzle is controlled by an independent servo motor

4. Double headed double rails, two rails, supporting the simultaneous production of two different products

5. Four sets of cameras, head flying camera identification components, visual alignment plus mark correction



Techinical parameter

线路板/PCB


PCB板尺寸/PCB size(L* W)

最大尺寸Max size:单板500mm*450mm(single PCB) 双板500mm*300mm(double PCB) 最小尺寸Min size: 50mm*50mm

PCB板厚度/PCB thickness

0.5-4.5mm

PCB板固定方法/PCB clamping

气缸夹板,轨道宽度可调/Cylinder clamping, track width adjustable

定轨方式/Rail

双轨双臂(1 轨4轨为固定轨道)/2 Rail,2 gantries(Rail 1,4 are fixed rail)

系统/Sy stem

Windows 7

软件/Software

自主研发/ R&D independently

生产管理MES系统/Production management MES system

提供要求定制(选配项)/ Customized(Option)

离线编程/Off-line programming

W/Available

相机数M/No. of camera

4套/4 sets (数字相机 Digital camera )

头部飞拍识别元器件/Head flight vision recognition component


视觉对位 plus MARK校正/Vision alignment plus Mark correction


重复精度/Repeat precision

±0.02mm

贴片高度/Mounting height

w20mm

贴片速度/Mounting speed

90000CPH (本公司最优条件下)(Optimum speed)

贴装零件范H/Components range

0201~10mm封装料及IC料/Min 0201~10mm packages and IC etc.

使用电源及功率/Power

380AC 50HZ 6KW

使用环境/Operating environment

23 degree ±3 degree

传输方向/Transmission direction

标准(单向)/Standard: Single direction

传送方式/Transmission mode

在线/Online drive

定位方式/Position mode

光学/Optical

耗气量/Air consumption

0.4-0.6mpa ( 4-6kgf/cm2) 150N/min

电气控制/Electrical control

ETON 自主研发/Independent research and development by ETON

运动控制卡模块 1 套/Motion control card module 1 set

ETON 自主研发/Independent research and development by ETON

XYZ轴驱动方式/X,Y,Z Axis drive way

高端磁悬浮电机 plus 伺服电机/High-end magnetic linear motor plus Servo motor

可放置送料器数量/No. на захранващата станция

双边站位32PCS,可装物料64盘(单边站位16PCS,可装物料32盘) Double side:32pcs,total tape reel Packages 64pcs(single side:16pcs, total tape reel Packages 32pcs)

吸嘴安装数量/No. of Heads

5R&2OPCS(#-ii1 OPCS)/Double side:20pcs(single side:1 Opes)

送料方式/Feeding way

双头智能送料器/Intelligent Double head Feeder

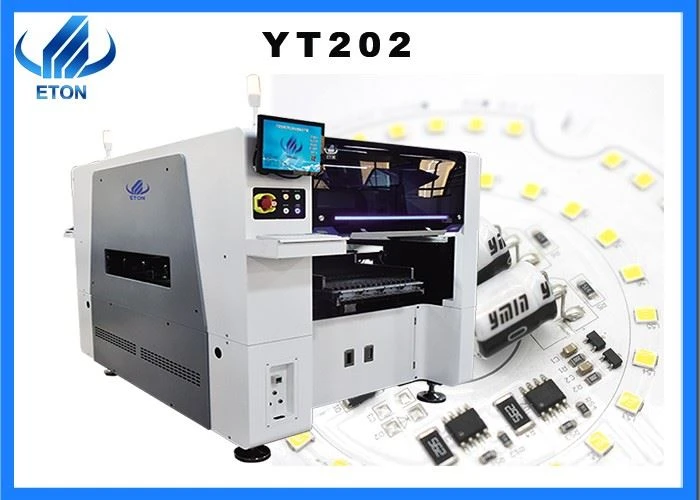

 YT202-02
